Bucket Elevator

The traction component of the steel wire belt bucket elevator adopts high-strength steel wire rope core rubber belt, which has the characteristics of large conveying capacity, small volume, low power consumption, stable and reliable operation, and long service life.

Brief Introduction Of Steel Wire Belt Bucket Elevator

Suitable for vertical lifting of dry powder materials or small particle materials, widely used in bulk material lifting systems in industries such as building materials, metallurgy, chemical engineering, and power. It is an ideal equipment for feeding raw materials into the kiln tail of new dry process cement plants, homogenizing raw materials, and loading materials in cement warehouses.

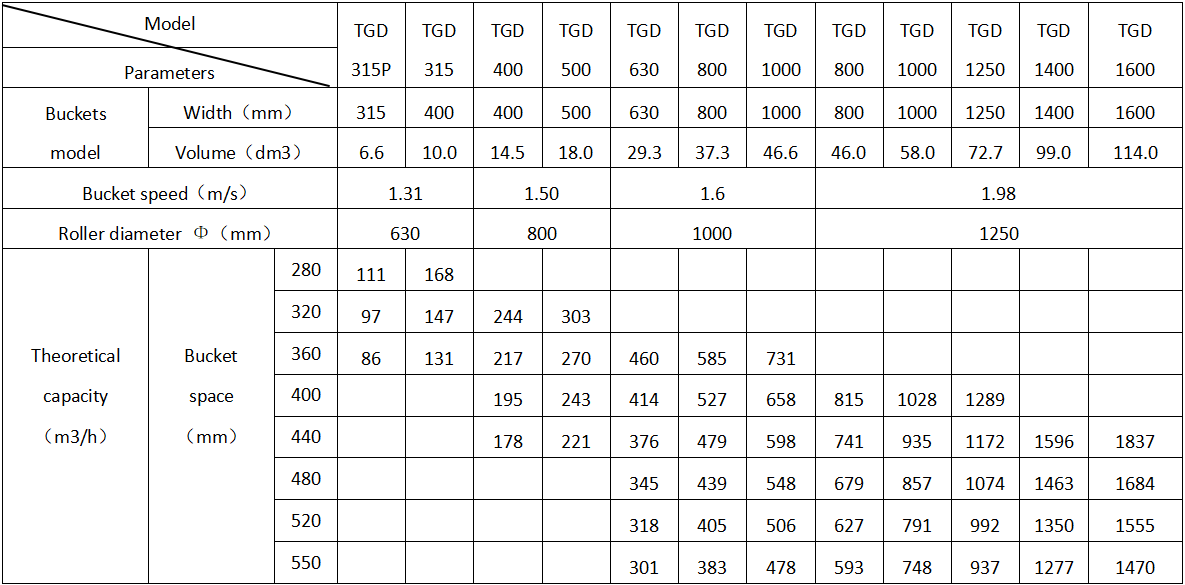

Technical Parameters Of Steel Wire Belt Bucket Elevator

* The conveying capacity in the table corresponds to 100% bucket loading capacity

* Reasonable bucket filling rate: around 75%

Brief Introduction Of Steel Plate Chain Bucket Elevator

The plate chain elevator has no limited requirements for the type, characteristics, and block size of materials. Not only can it improve powdery, granular, and blocky materials, but it can also improve materials with high grinding ability and materials with a temperature of 250 ℃. The conveyor chain adopts a plate chain type high-strength wear-resistant chain, which extends the service life of the chain and chain bucket.

Technical Parameters Of Steel Wire Belt Bucket Elevator
