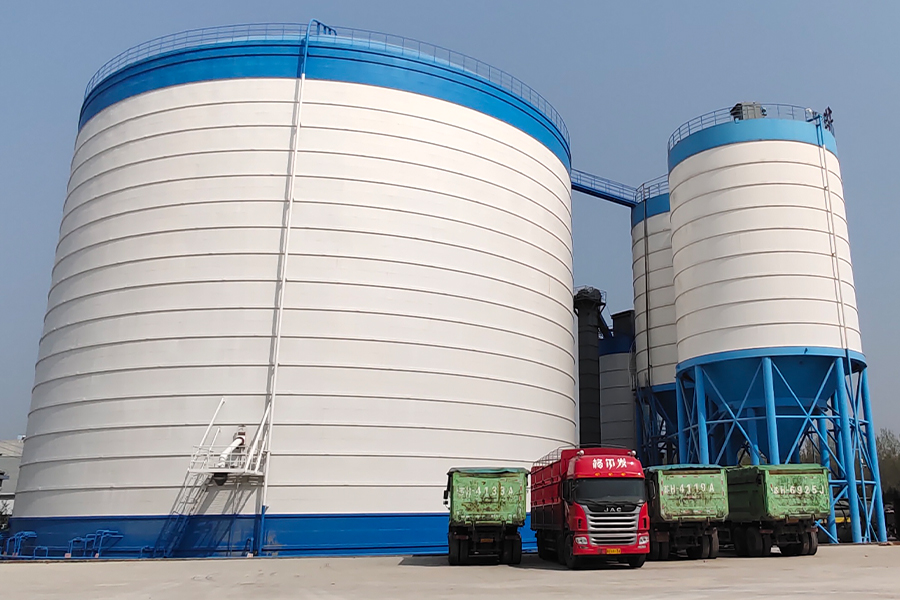

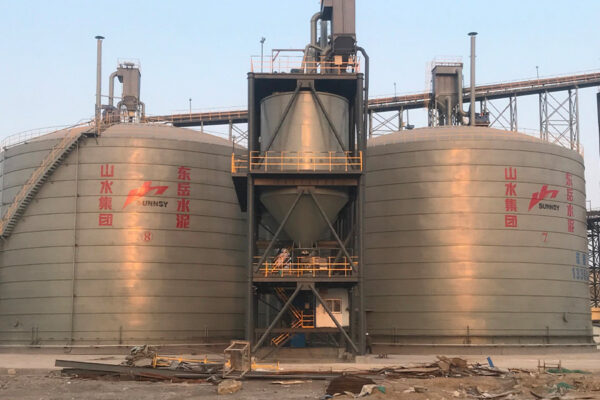

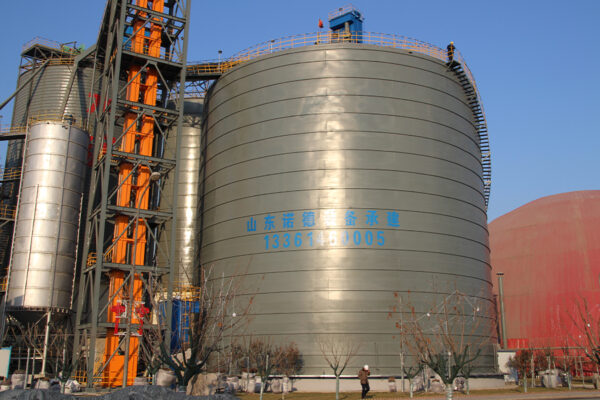

Weld Silo
The large welded silo constructed by steel plates with skilled welding technology. The technology originates from China and has experienced more than 20 years development. Widely used in the bulk material storage industry. Each silo is composed of four parts: foundation, silo body, aeration unloading system and control system.
Single silo capacity can reach to 100000m3, at the same time, larger capacity silo group can be constructed.
It is suitable for construction in various geological and meteorological conditions.
Mainly used to store powdery materials, granular materials, liquids and other materials, such as cement, fly ash, slag powder, clinker, limestone, etc.
Large Scale Material Storage Solution
The wide application of large scale weld steel silo solves the problems of large scale storage of cement production and storage, fly ash storage, and transfer terminals in the off-season, avoids the loss of production in the off-season, obtains the due benefits through best-selling in peak season, investment benefits the enterprise .
Characters of large scale weld silo:
- 01 Large scale storage capacity
-
Single silo capacity can reach to 100000m3, achieve the storage requirements of mass storage, transit and continuous production in low season.
- 02 Save investment and short construction period
-
Per ton material storage investment is less than 50% of concrete silo.
- 03 It can be built and operated in 3 to 4 months.
Quickly establish and put into use
- 04 Nord patent aeration unloading technology
-
Aeration unloading capacity ranges 100~500 ton per hour, silo empty unloading rate can be more than 95%.
- 05 Perfect overall performance
-
Environmental protection, energy saving, land saving, and design life is up to 30 years.

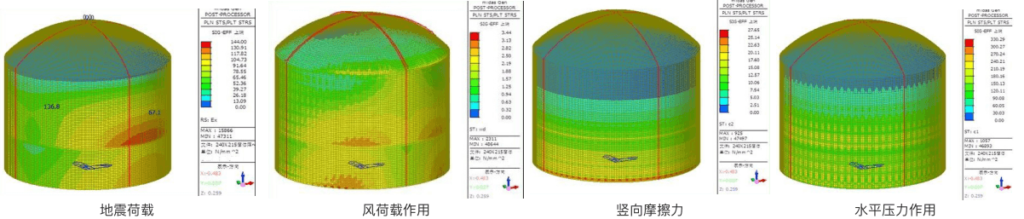

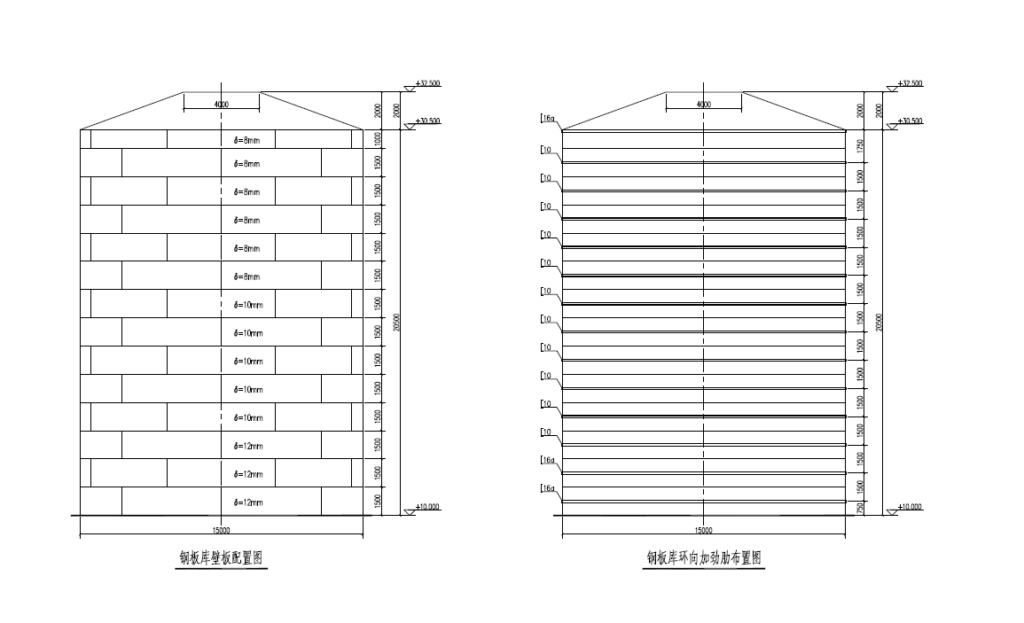

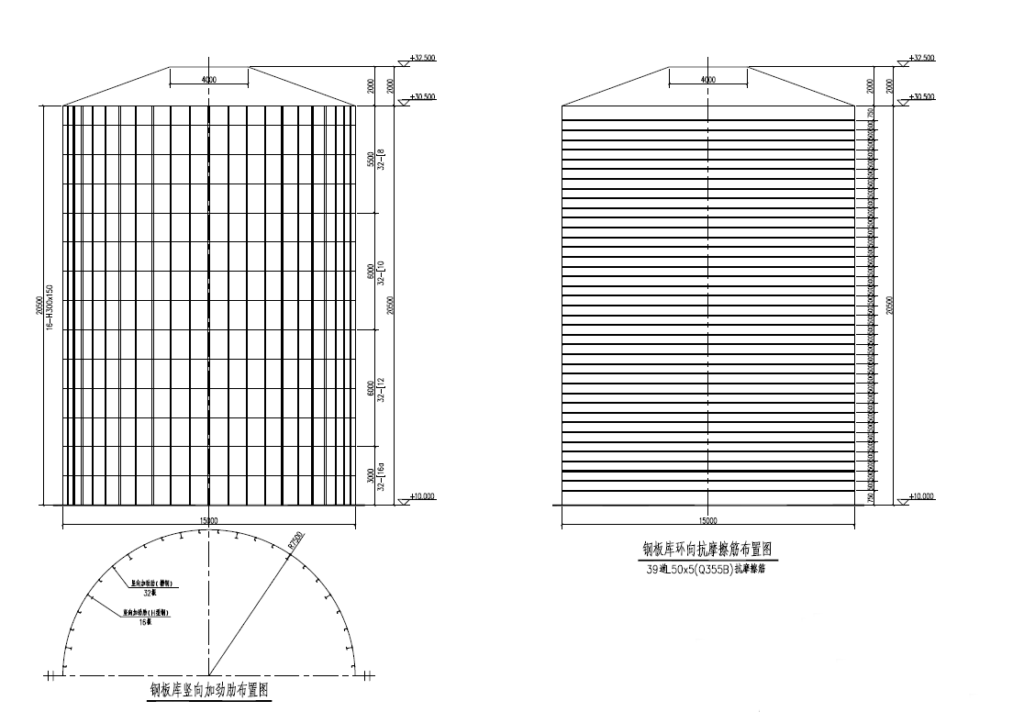

Technical Parameter
Large -scale welded steel board warehouse selection table
(special size can be customized according to customer needs)
| Index | Diameter(m) | Silo Height | Capacity(m³) | Cement(T) | Fly Ash(T) | Grain(T) | Slag Powder(T) | Clinker(T) |
|---|---|---|---|---|---|---|---|---|
| 1 | 20 | 18 | 5000 | 6780 | 4520 | 4230 | 6290 | 4400 |
| 2 | 24 | 24 | 10000 | 13000 | 8670 | 8120 | 12000 | 8450 |
| 3 | 28 | 26 | 15000 | 19400 | 11650 | 12100 | 17760 | 12560 |
| 3 | 28 | 26 | 15000 | 19400 | 11650 | 12100 | 17760 | 12560 |
| 4 | 30 | 30 | 20000 | 26200 | 17500 | 16370 | 24000 | 17000 |
| 5 | 35 | 30 | 25000 | 32700 | 21800 | 20500 | 30000 | 21300 |
| 6 | 38 | 31 | 30000 | 39000 | 26100 | 24500 | 35800 | 25500 |
| 7 | 38 | 36 | 35000 | 45400 | 30300 | 28400 | 41600 | 29500 |
| 8 | 40 | 36 | 40000 | 52000 | 34500 | 32400 | 47500 | 33000 |
| 9 | 45 | 38 | 50000 | 60300 | 40200 | 37700 | 55300 | 39200 |
| 10 | 46 | 40 | 60000 | 69800 | 46500 | 43600 | 64000 | 45400 |
| 11 | 50 | 41 | 70000 | 84000 | 56000 | 52500 | 77000 | 54600 |
| 12 | 52 | 44 | 80000 | 96000 | 64000 | 60000 | 88000 | 62200 |
| 13 | 55 | 44 | 90000 | 109000 | 724000 | 68000 | 99500 | 70600 |
| 14 | 60 | 45 | 100000 | 120000 | 80000 | 75000 | 110000 | 78000 |
| 15 | 60 | 49 | 120000 | 144200 | 96100 | 90100 | 13200 | 93700 |
